EMR150FC2
EMR150FC2

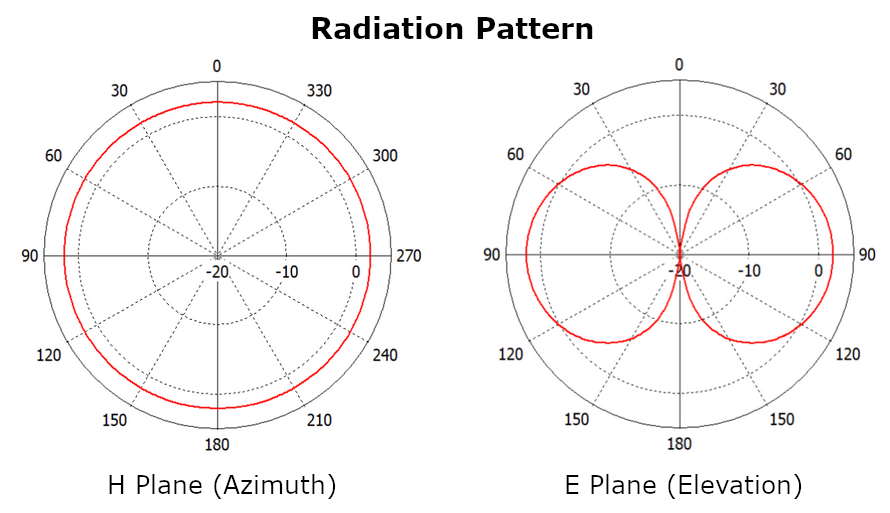

The EMR150FC2 is a vertical base station antenna covering the 144-174 MHz band. This antenna offers a stable radiation pattern across the entire band. The antenna is enclosed in a heavy-duty fiberglass radome and has a fixed N type female connector.
Product Features:
- Ideal for Base Station applications
- Factory tuned, no further tuning required
- Fully enclosed in a heavy duty radome
- Weather and corrosion resistance
- 3 Year Warranty
Additional information
| Frequency (Continuous) | 144-174 MHz |
|---|---|
| Bandwidth | |
| Gain | |
| Power Rating (Max.) | |
| Impedance (Nom.) | |
| Polarization | |
| VSWR (Max.) | |
| E Plane | |
| H Plane | |
| RF Connector Type | |
| Antenna Dimensions (HxWxD) | 55" x 3.8" x 3.8" |
| Weight (Antenna+Mounts) | |
| Material | |
| Mounting | 2 – 3.5" mast diameter, heavy duty stainless steel mounting bracket |
| Wind Loading | 33 lb / 147.5 N @ 100 MPH |
| Wind Loading with 1/2" Ice | 132 lb / 589 N @ 175MPH, 97 lb / 433 N @ 150 MPH |
| Wind Rating | |
| Wind Rating with 1/2" Ice |
