W64534/ENCI-1
W64534/ENCI-1

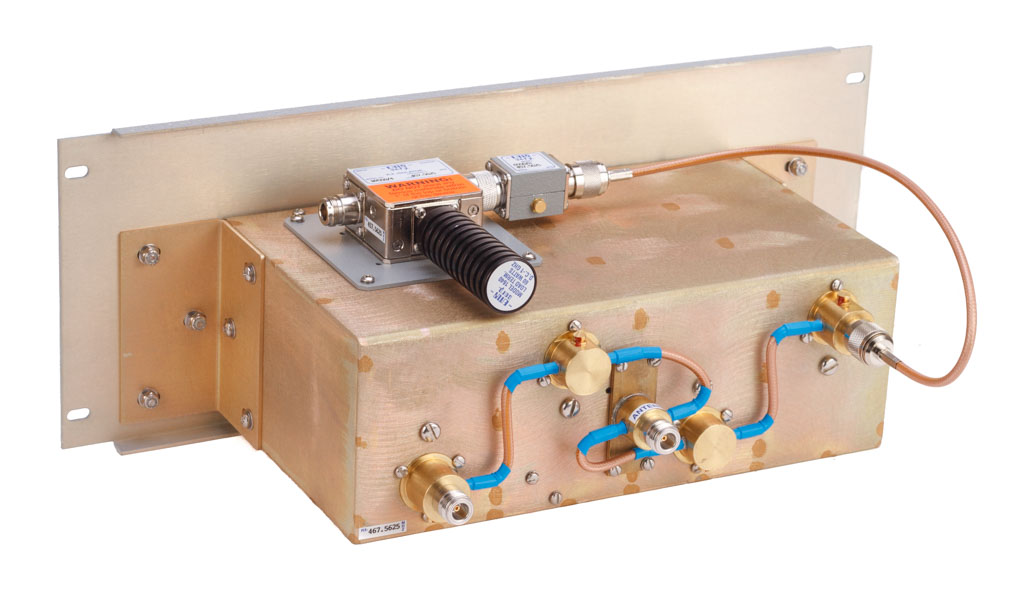

EMR Iso-Plexers allow a transmitter and a receiver to share a common antenna allowing bi-directional (duplex) communication over a single channel. These units consist of a number of cavity resonators, isolators and second harmonic filters providing adequate isolation between a transmitter and receiver sharing a common antenna. Our signature square pass-notch cavities provide greater Q while requiring less space than conventional round cavities. Multi-cavity configurations come standard with 19 inch EIA rack mounting bars or panel with chassis tray.
- Excellent isolation
- Second harmonic suppression
- High Q Square cavities
- Space saving design
- 5 year warranty

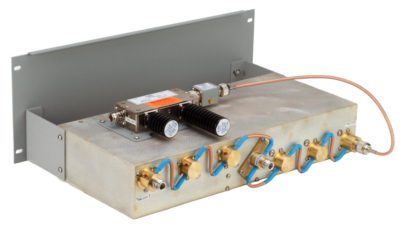

EN Series Antenna Duplexers consist of a group of cavity resonators connected and tuned together to allow both a transmitter and a receiver to share a common antenna allowing bi-directional (duplex) communication over a single channel. These units feature compact, high Q cavities, requiring less rack space than standard 4 inch cavities. The cavities are arranged in an order which provides enough isolation to keep the transmitter from interfering with the receiver.
Additional information
| Frequency Band | |
|---|---|
| Offset (Min.) | |
| Bandwidth | |
| Number of Resonators | |
| Input Power (Max.) | |
| Insertion Loss Tx (Max.) | |
| Insertion Loss Rx (Max.) | |
| Isolation Tx-Rx (Min. / Typ.) | |
| Isolation Rx-Tx (Min. / Typ.) | |
| Isolation Ant-Tx (Min. / Typ.) | |
| Isolator Stage | |
| Impedance (Nom.) | |
| RF Connectors | |
| Finish | |
| Cavity Size / Quantity | |
| Rack Mount | |
| Rack Units | |
| Operating Temp. Range | |
| VSWR I/O (Max.) |
