24108-1/P-5
24108-1/P-5

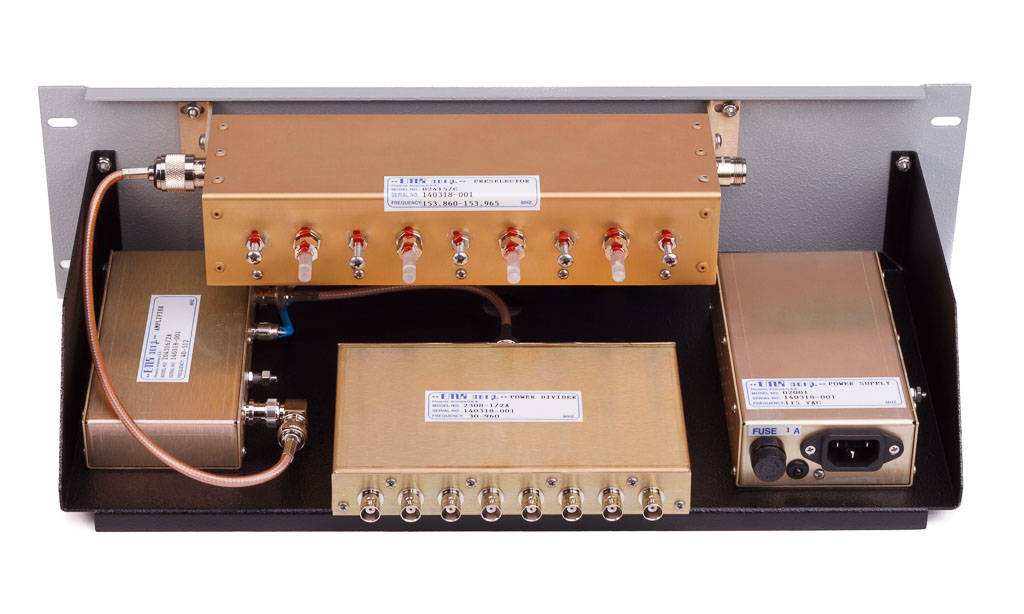

EMR Receiver Multicouplers allow several receivers to share a common antenna. These units include a preselector, amplifier, power supply and power divider which effectively amplifiy a filtered band of frequencies to individual receivers. The power divider provides a minimum of 23 dB of port-to-port isolation preventing signal mixing even at minimal channel separation.
Product Features:
- Rugged constructed components
- Flat gain, high performance Low Noise Amplifier
- High compression point, Low IM generation
Additional information
| Weight | 12 lbs |
|---|---|
| Frequency Band | |
| Number of Channels | |
| Passband Range | |
| Number of Resonators | |
| Isolation Rx-Rx (Min.) | |
| Amplifier Gain (Typ.) | |
| Amplifier Bias Voltage | |
| Amplifier Noise Figure | |
| Amplifier Current Draw | |
| Amplifier Type | |
| 1dB Comp. Point | |
| System NF (Typ.) | |
| System Voltage | |
| VSWR @ Resonance (Max.) | |
| Impedance (Nom.) | |
| RF Connectors (I/O) | |
| Finish | |
| Rack Mount | |
| Rack Units | |
| Operating Temp. Range |
