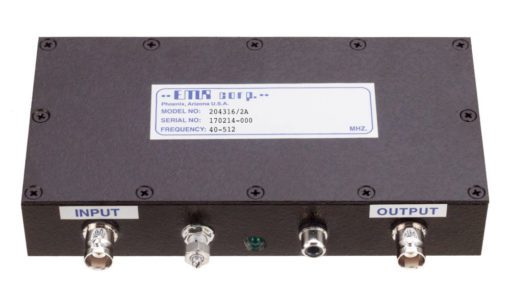

204316/2A
204316/2A
EMR pre-amplifiers increase the power of the input signal by the gain of the amplifier. These units are normally used in EMR Receiver Multicouplers and Signal Enhancement, BDA/UDA systems. EMR pre-amplifiers use Bi-Polar, High IP3 modules for lower noise factor, ideal for applications in congested RF environments.
Product Features:
• Excellent 3OIP and 1dB compression point
• Higher gain available
• Low noise
Additional information
| Weight | 2 lbs |
|---|---|
| Frequency Band | |
| Amplifier Gain (Typ.) | 29 @ 512 MHz, 30 @ 450 MHz, 31 @ 380 Mhz, 34 @ 220 MHz, 35 @ 150 MHz, 35 @ 40 MHz |
| Amplifier Noise Figure | |
| Amplifier Type | |
| Amplifier Bias Voltage | |
| 1dB Comp. Point | |
| Amplifier Current Draw | |
| Amplifier Gain Adjust | |
| Finish | |
| Operating Temp. Range | |
| VSWR I/O (Max.) |
